Infeed-Can Cleaning

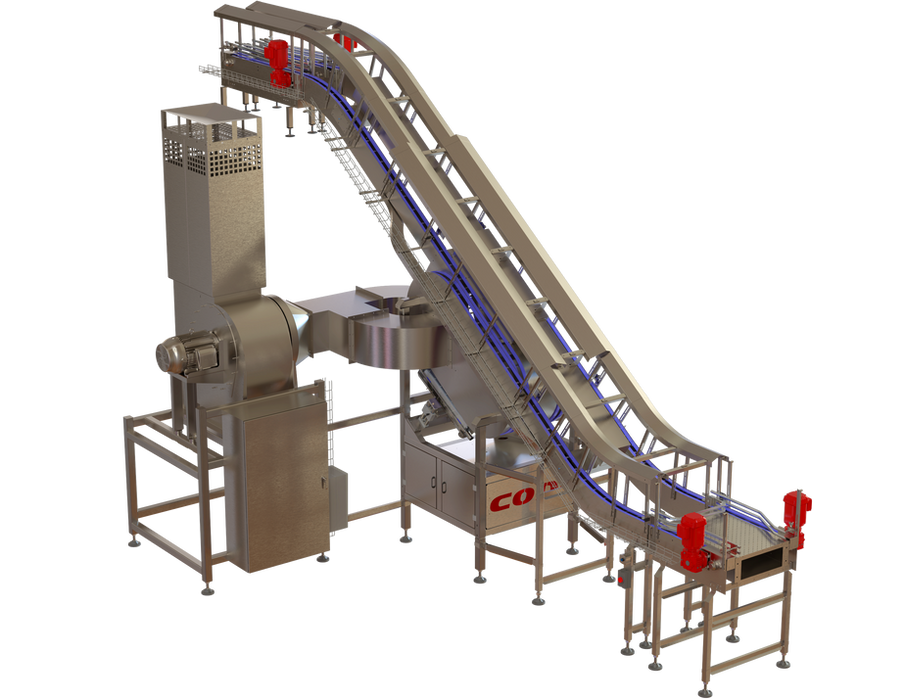

Vacuum Loop Air Rinser
The Vacuum Loop Air Rinser prepares empty cans for filling by removing dust, debris, and other contaminants that could affect product quality. Its gentle vacuum conveyance reduces contact and jams, while variable-speed, no-adjustment operation ensures smooth performance across container sizes and line speeds.
A loop-style rinser that extends the travel path to increase dwell time and vacuum exposure, delivering deeper cleaning for taller containers or applications that need more debris removal. A good fit when layout flexibility or enhanced cleaning performance is required.
Weight
-
1500-2000lbs (680-910kgs)
Power
-
TBD with application
Single Loop
-
L: 28' (8540mm)
-
W: 3' (920mm)
-
H: 16' (4880mm)
Dual Loop
-
L: 28' (8540mm)
-
W: 6' (1830mm)
-
H: 16' (4880mm)
S-Loop
-
L: " (mm)
-
W: " (mm)
-
H: " (mm)
Dimensions & Weight
-
L: 84" (2134 mm)
-
W: 34" (864 mm)
-
H: 70" (1778 mm)
-
Weight: ~1300 lbs (590 kg)
Performance
-
Speed: Up to 55 CPM under ideal conditions
Utilities
-
Power: 208–240 V, 3 Phase
-
Air: 11 CFM @ 110 PSI
-
CO₂: 60 PSI (16 oz: 50 lbs/110 cs; 12 oz: 35 lbs/100 cs)
Beverage Parameters
-
Temperature: 28 – 52 °F (–2 – 11 °C)
-
Carbonation: 0 – 4 vol CO₂ (0 – 8 g/L)
-
Features
-
304 stainless steel construction for durability and cleanability
-
Integrated blower provides suction to keep containers securely on the conveyor
-
High throughput: up to 1,200 CPM (2,400 CPM dual-lane configuration)
-
Gentle handling system: eliminates the need for tracks or side grippers
-
Tool-free operation: no adjustments required for different can sizes
-
Customizable entry and exit heights for easy line integration
-
Ionized air rinse system removes debris from cans while helping to:
-
Conserve water
-
Eliminate residual water issues
-
Lower wastewater and reclamation costs
-
Reduce microbiological contamination risk
-
Dry operation: not compatible with traditional water rinsers
-
Codi warranties our products against defects in design and workmanship for up to 12 months after shipment or 1,000,000 cans produced, whichever comes first.
Third-party components are covered under their manufacturer’s warranties, and we’ll support you in making any claims.
During the warranty period we will repair or replacement of defective parts (wear parts excluded).
