Twist Rinse
TWIST RINSER
Can inversion rinser | twist rinse can infeed | pre-fill can cleaning system for beverage packaging lines

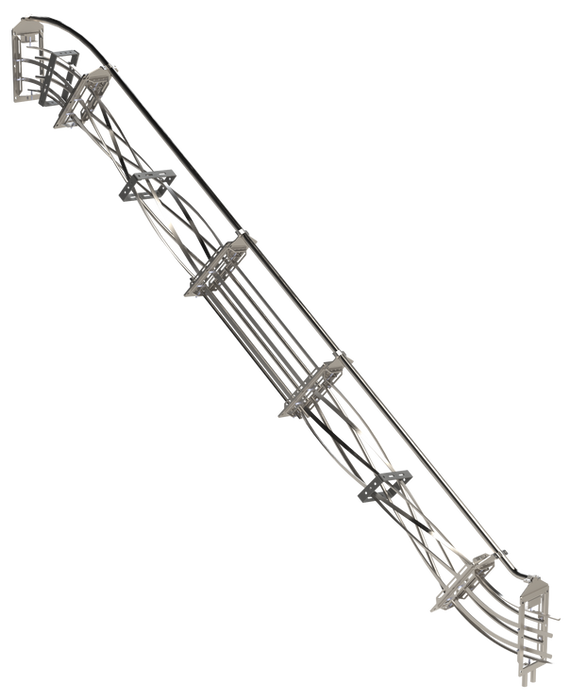

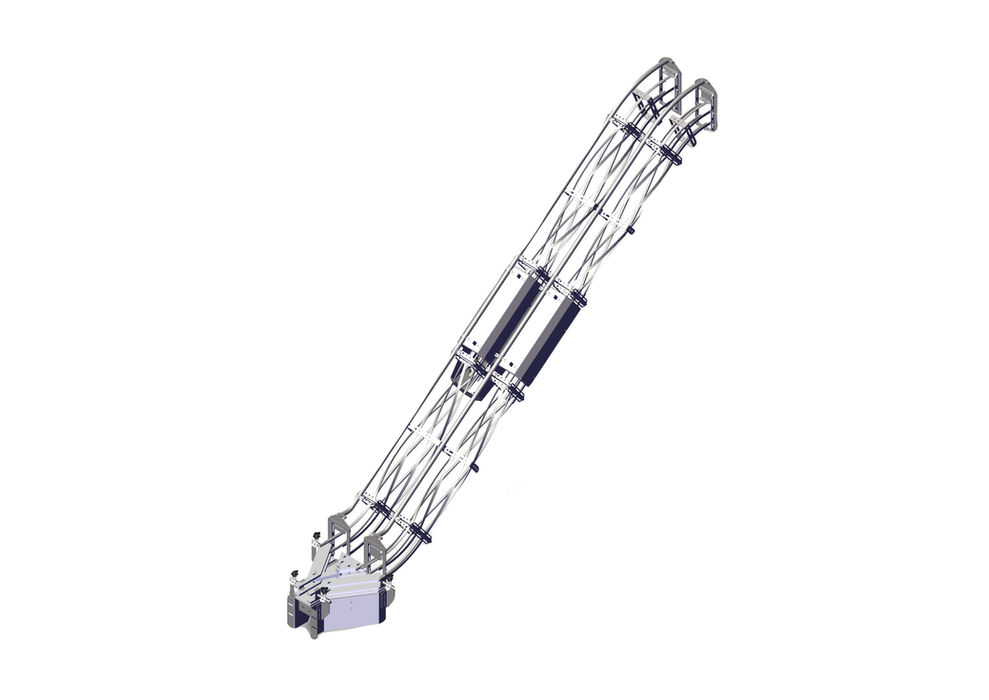

The CODI Twist Rinser is a gravity-fed can rinser that inverts empty cans through a fixed track, cleans the interior with ionized air or water, and returns them upright ahead of the filler at up to 1,400 CPM. Gravity moves the containers and the track geometry does the work, which keeps the assembly at roughly 75 pounds. The track handles containers from 100mL through Crowlers, with discharge heights of 40, 45, or 49 inches to meet your filler deck. Mount it to a depalletizer or specify the short-track hand-feed version.
The CODI Twist Rinser is a gravity-fed can rinser that inverts empty cans through a fixed track, cleans the interior with ionized air or water, and returns them upright ahead of the filler at up to 1,400 CPM. Gravity moves the containers and the track geometry does the work, which keeps the assembly at roughly 75 pounds. The track handles containers from 100mL through Crowlers, with discharge heights of 40, 45, or 49 inches to meet your filler deck. Mount it to a depalletizer or specify the short-track hand-feed version.
PRODUCT FEATURES
Commercial-Grade Construction
5/8" half-round stainless steel with a reinforced topside backbone, built to the same standards used by major can manufacturers. Bolts directly to depalletizer and filler without additional support structures.
Any Can Size, Any Line
Twist Riners sizes available for nearly every can format from 100 mL to large crowlers. Multiple track sizes can mount to the same depalletizer. Compatible with all depalletizers and fillers on the market.
Dual Bottom Rails
Dual rails along the bottom of the inversion section allow large debris to fall clear of the can interior rather than staying inside during the rinse cycle.
Hand Feed Option
Floor support hand feed option makes the Twist Rinser usable as a standalone mobile unit for flexible or lower-volume setups.
PRODUCT INFORMATION
2–1,400 CPM
Short Track Available (hand or 1/2 height)
100 mL to Crowler
Dimensions & Weight
L: 103" (2616 mm)
W: 82" (2083 mm)
H: 6.5" (165 mm)
Weight: ~75 lbs (34 kg)
Utilities
Air: ionized Air Optional
Can Size
Specify
Discharge Height
40"
45"
49"
Custom
Mounting
Single Track
Y-Splitter
E-Splitter
Slider
Custom
Infeed Height
Standard
High Speed CODI Line
Custom
Prefill Rinse
Water
Ionizer (Specify CPM)
Gravity-Fed Container Transfer
Simple track system guides containers using gravity for reliable, low-maintenance operation.
No motors or complex mechanisms
Consistent container flow from depalletizer to filler
Minimal maintenance requirements
Construction
Built for durability and long-term use in production environments.
5/8” half-round stainless steel construction
Reinforced for added strength
Topside support structure maintains alignment
Container Compatibility
Accommodates a wide range of container sizes and formats.
Can be built to accomodate containers from small cans to large crowlers
Multiple track sizes available
Throughput & Performance
Designed to support a wide range of line speeds.
Handles speeds from 2 to 1,400 CPM
Smooth, continuous container movement
Line Integration
Easily integrates into existing canning lines.
Bolts directly to depalletizers and fillers
Compatible with a wide range of equipment
Hand-feed options available with floor supports
Debris & Water Management
Built-in features help manage rinse water and debris.

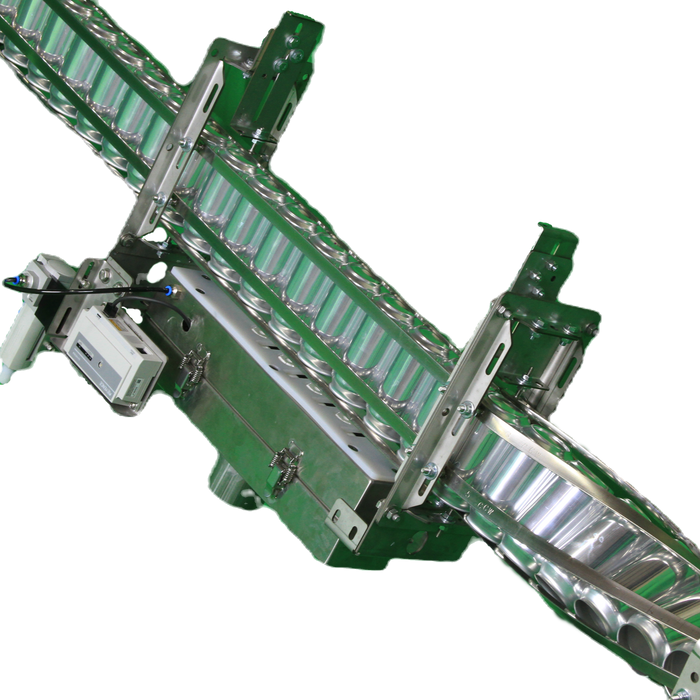

Integrated water rinse with drip tray and NPT drain
Dual bottom rails allow debris to fall away from containers
Clean cans and dry floors
VIDEO
ACCESSORIES
Nitro Doser
Tool Box
Date Coder
CO2 Tunnel
CO2 PrePurge
Foam Jetter
Rinse Tunnel
Blower DryOff
Lubrication System
RESOURCES
Add a Title
Add a Title
Add a Title
FAQ
What is the difference between a twist rinser and a vacuum rinser?
A twist rinser uses a fixed, custom-formed mechanical twist cage to physically invert the container over an ionized air or water manifold, then right it before discharge. A vacuum rinser holds cans against a moving overhead belt, requiring no mechanical twist cages.
What container sizes does the Twist Rinser accommodate?
Each twist cage is purpose-built to a specific container diameter and height profile (e.g., 12oz standard or 16oz standard). Running multiple can sizes requires swapping the twist cage assembly, which can be completed quickly with quick-release hardware.
Can the Twist Rinser run without water?
Yes. When configured with an ionized air manifold, it strips static electricity from the container walls so dust and cardboard debris drop out cleanly without generating wastewater or interior condensation.
How does the Twist Rinser feed into the canning line?
It mounts directly inline between your depalletizer discharge and filler infeed, operating at synchronized speeds driven by standard conveyor drives.
