CCL-45ROPP
ROPP COUNTER PRESSURE FILLER & CAPPER
Counterpressure bottle filler with ROPP capper | isobaric filling machine | craft beverage bottle packaging line

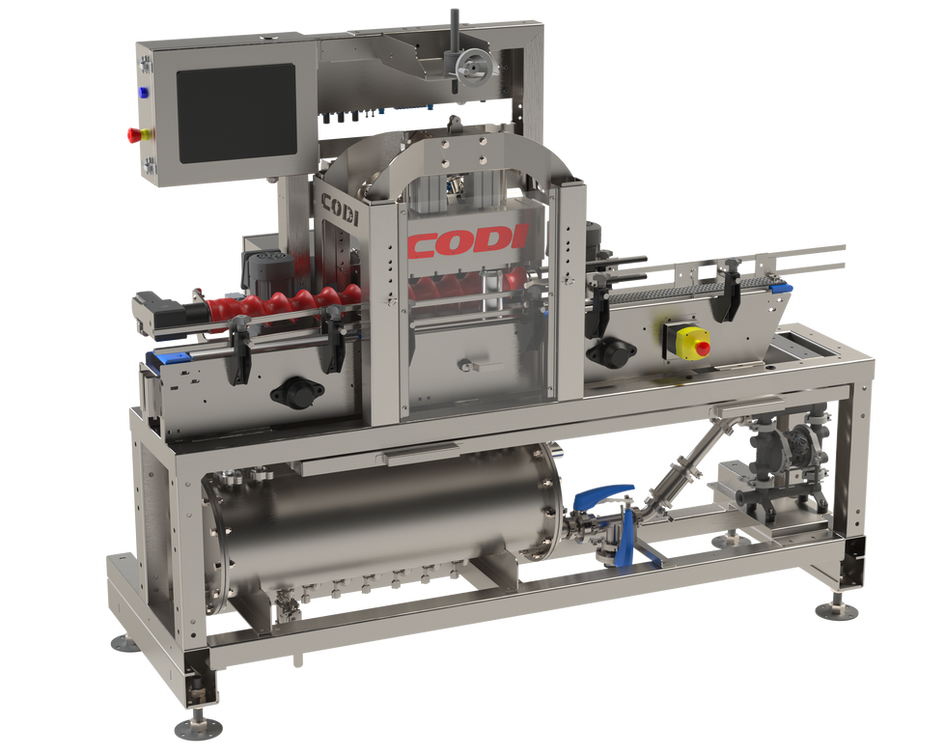

The CODI CCL-45ROPP is a counterpressure bottle filler and ROPP capper that handles carbonation up to 4.0 volumes and incoming liquid temperatures up to 52°F. It uses the same counterpressure technology as the CCL-45 can filler, adapted for bottles with ROPP closures. Each fill head seals the bottle, purges with CO2, then fills under pressure. Compatible with BVP, MCA, GPI 1680, GPI 1683, 28mm, and 31.5mm ROPP formats. 304 stainless steel throughout with true CIP capability. Cam-driven capping syncs with the feed screw for consistent closure timing.
The CODI CCL-45ROPP is a counterpressure bottle filler and ROPP capper that handles carbonation up to 4.0 volumes and incoming liquid temperatures up to 52°F. It uses the same counterpressure technology as the CCL-45 can filler, adapted for bottles with ROPP closures. Each fill head seals the bottle, purges with CO2, then fills under pressure. Compatible with BVP, MCA, GPI 1680, GPI 1683, 28mm, and 31.5mm ROPP formats. 304 stainless steel throughout with true CIP capability. Cam-driven capping syncs with the feed screw for consistent closure timing.
PRODUCT FEATURES
Clean-in-Place (CIP)
Fully CIP-capable with closed-loop recirculation, high-temperature rated components, and PLC-controlled cycles for thorough, repeatable sanitation between runs.
Counterpressure Filling
Isobaric filling seals and purges each can with CO₂ before filling under pressure, protecting carbonation and enabling consistent fills across a wider range of temperatures and carbonation levels up to 4.0vols.
Multi-Format ROPP Compatibility
Supports BVP, MCA, GPI 1680, GPI 1683, 28mm ROPP, and 31.5mm ROPP closures. Change parts allow quick conversion between formats.
Centralized HMI Control
A single control point manages purge cycles, tank pressure, fill rate, settle time, and snift cycles, with audible and visual alerts if anything falls out of spec.
PRODUCT INFORMATION
Up to 55 BPM
Up to 4.0 vol CO₂
Small Footprint
Dimensions & Weight
L: 84" (2134 mm)
W: 34" (864 mm)
H: 70" (1778 mm)
Weight: ~1300 lbs (590 kg)
Performance
Speed: Up to 55 BPM under ideal conditions
Utilities
Air: 11 CFM @ 110 PSI
CO₂: 60 PSI (16 oz: 50 lbs/110 cs; 12 oz: 35 lbs/100 cs)
Beverage Parameters
Temperature: 28 – 52 °F (–2 – 11 °C)
Carbonation: 0 – 4 vol CO₂ (0 – 8 g/L)
Bottle Compatibility
BVP
MCA
GPI 1680
GPI 1683
28mm ROPP
31.5mm ROPP
Certification
UL Standard
CE
CSA
Voltage
208-240V / 3PH
208-240V / 1PH
380-500V / 3PH
Heads/ROPP
3 Head
6 Head
ROPP System
ROPP Capper Upgrade
CO2 Tunnel
Available
Can Maker
Specify
Can Sizes
Specify
Chuck Setup
Specify
Screw Lubrication System
Available
Pre-Purge
None
Pre-Purge
Widget Purge
Foam Jetter
Available
Bi-Directional CIP
Available
Flowmeter
Available (Required for ROPP)
Product Quality
Low dissolved oxygen pickup
Counter Pressure technology enables canning across a wider range of temperatures and carbonation levels.
Built-in buffer tank pressurizes liquid with CO₂ before filling, keeping carbonation in solution.
Post-fill to seam foam management with controlled pressure release.
Continuous CO₂ monitoring throughout the fill process.
Cleaning & Sanitation (TACT-Compatible)
Brewery hose rated for high pressure and up to 180°F (82°C), with Tri-Clover sanitary fittings.
Cleaning solution is recirculated for high flow rates while conserving resources.
304 stainless steel construction withstands caustic cleaning agents.
PLC-controlled cycles for precise cleaning durations.
Control & Safety
HMI provides centralized control over fill rates, pressure, and snift cycles.
Audible and visual alerts notify operators if the system is compromised.
Integrated sensors monitor stacked lids and lid drop for uninterrupted operation.
Consistency & Reliability
Cam-driven seaming delivers consistent seals every time.
Engineered for repeatable performance and easy operator oversight.
VIDEO
ACCESSORIES
FAQ
What is a ROPP?
ROPP stands for roll-on pilfer-proof. It is an increasingly popular format where an unthreaded aluminum cap shell is placed over the container neck, and spinning threading wheels form the threads and tamper-evident band directly around the bottle finish.
What ROPP containers does the CCL-45ROPP handle?
It is purpose-built for aluminum bottles and glass bottles utilizing standard ROPP neck finishes, bringing high-speed automated capping to wine, ready-to-drink (RTD) cocktails, carbonated water, and specialty beverages.
How does it handle high carbonation levels?
Like the standard CCL-45, it utilizes true counter pressure fill logic. By pressurizing the bottle to match tank pressure prior to filling, it holds carbonation up to 4.0+ volumes CO2 in solution without foaming out during the transition to the ROPP capping head.
Can the CCL-45ROPP also fill cans?
The CCL-45ROPP is dedicated to bottle filling and ROPP capping. For operators looking to run traditional seamed aluminum cans, the standard CCL-45 or enclosed CCL-45CE provides industry-leading seamer performance.
