DEPALLETIZER DPL-250

Automated can depalletizer | layer sweep depal | craft beverage packaging line

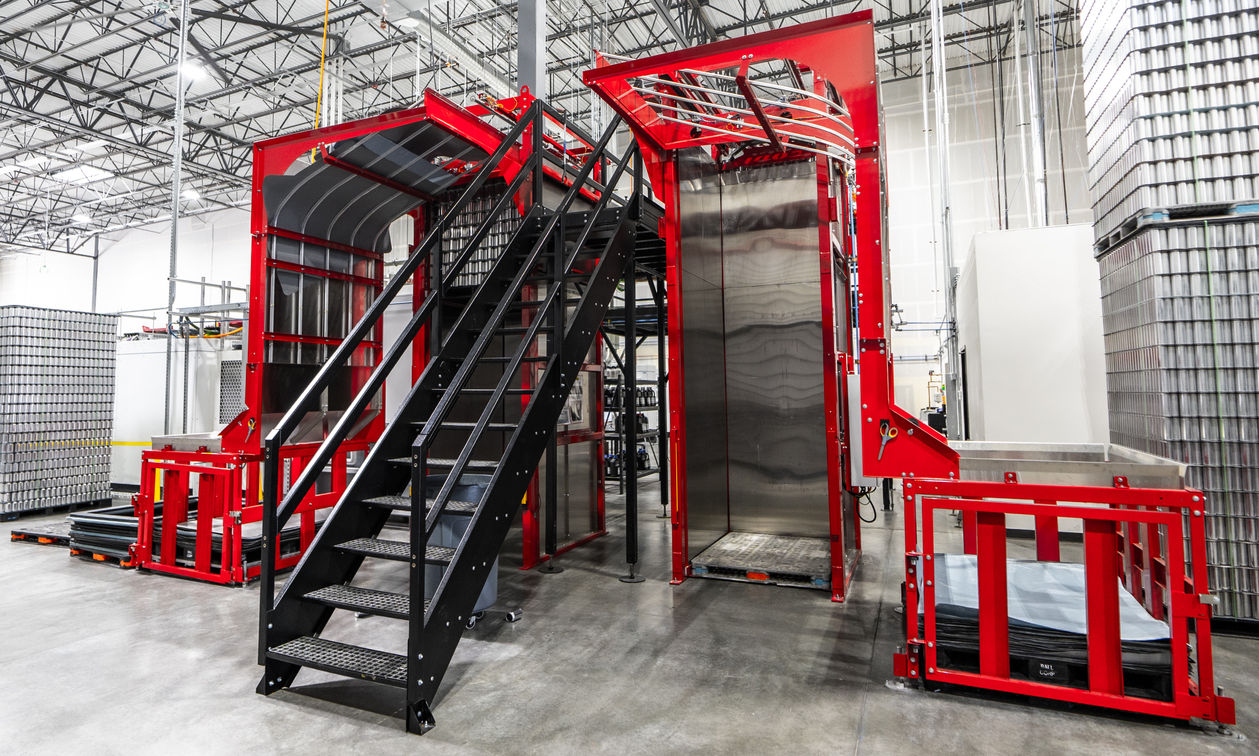

We made the DPL-250 for beverage producers that need reliable depalletizing without moving into high-speed plant-scale equipment. It is designed for consistent can unloading, smooth line integration, and dependable operation upstream of rinsing, filling, seaming, and packaging equipment. It integrates well with our counterpressure filler or any canning system.

Most depalletizers use a garage-door-style lift mechanism that puts greasy, moving parts directly above your open cans. The DPL-250 solves that with an enclosed-chain counterbalance system that keeps all the mechanical components away from the product path and contamination-fee. Built for growing beverage operations running up to 250 CPM, it automatically lifts and sweeps full pallet layers onto the conveyor with smooth, consistent motion. VFD-controlled drives, an encoder that tracks exact layer position, integrated slip sheet removal, and a touchscreen HMI make it straightforward to run, service, and integrate into your line.

Up to 250 CPM

PRODUCT FEATURES

Enclosed-Chain Counterbalance Lift

No overhead grease drip points above open cans. The lift mechanism is fully enclosed, keeping contamination risks out of the product path where they don't belong.

Side-Driven Layer Sweep

Locking hardware holds cans secure during the sweep so they arrive on the conveyor upright and undamaged, every layer.

Integrated Single Filer

A built-in single-filer conveyor comes standard. No separate integration required to get cans moving single file into your line.

VFD-Controlled Drives with Encoder Positioning

Variable frequency drives let you dial in speed to match your line, and the encoder tracks exact layer position so the lift stops where it should, every time.

PRODUCT INFORMATION

Dimensions & Weight

L: 73" (1860 mm)

W: 121" (3080 mm)

H: 130" (3310 mm)

Weight: ~2700 lbs (1225 kg)

Performance

Speed: Up to 250 CPM

Utilities

Air: 5 CFM @ 110 PSI
Certification

UL Listed (standard)

CSA Compliant

CE Compliant

Voltage

200-240V / 1PH

200-240V / 3PH

380-500V / 3PH

Container Type

Can (standard)

Bulk Glass/Full Height

Bulk Glass/Half Height

Height

Standard

Tall

Short

Color

Codi Red (standard)

Option

Platform

RH Side Entrance

LH Side Entrance

RH Front Entrance

LH Front Entrance

RH Side Entrance Extended

LH Side Entrance Extended

Custom

Slip Sheet Storage

Collection Rack Top Mounted

Slide Low Level Catch Bin

Slide Vertical Catch Bin

Sweep Direction

RH Sweep

LH Sweep

Straight Sweep

Platform - Crows Nest

None

Standard with Ladder

Extended

Free Standing

Door

Standard

Integrated with Saftey Switch

Electrical Box Location

Opposite Load Side

RH when facing Load Side

LH when facing Load Side

Full Layer Push

None

7 foot Mass Discharge Conveyor

14 foot Mass Discharge Conveyor
Throughput & Performance

Built for steady operation across a range of production speeds.

VFD-controlled drives optimize speed and efficiency

Maintains smooth transfer from pallet to conveyor

Locking sweep design keeps containers secure

Minimizes product disturbance during transfer

Supports a range of container formats

Automation & Controls

Simplifies operation with intuitive system control.

Clean, user-friendly HMI interface

Easy setup and operation for operators

Centralized control of machine functions

Line Integration

Designed for seamless integration into existing canning lines.

Integrated single filer conveyor included

Smooth transition to downstream equipment

Configurable heights to match line layouts

Construction & Safety

Built for durability with operator protection in mind.

Carbon steel frame with three-sided enclosure

Designed for safe operation and easy access

Industrial-grade construction for long-term use

Efficiency Features

Reduces manual labor and improves operational flow.

Integrated slip sheet removal system

Eliminates manual handling steps

Improves overall line efficiency
