Rinse Tunnel
RINSE & DRY BOX
Post-fill can rinser and dryer | inline container drying | beverage packaging line

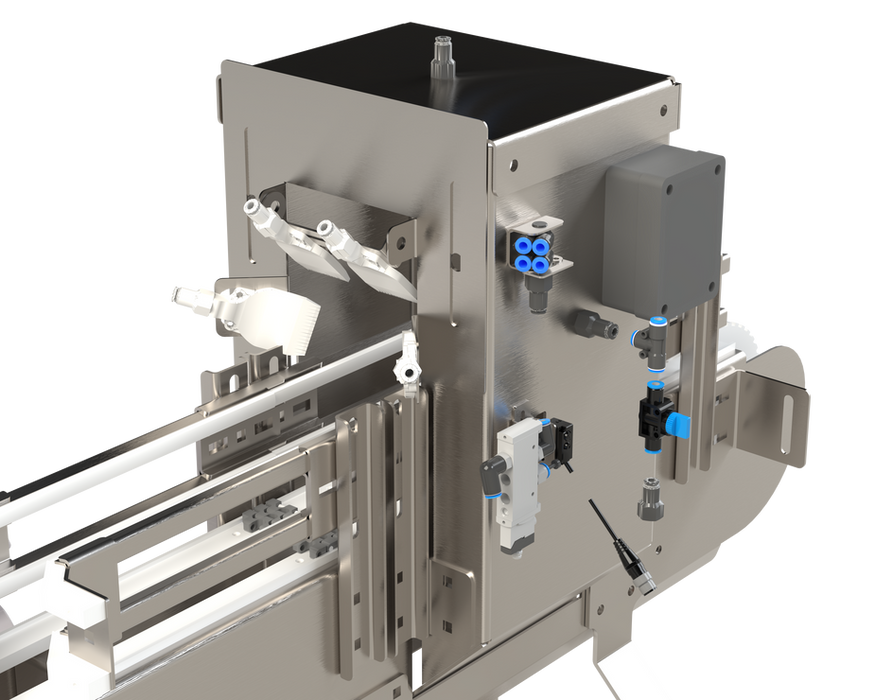

The CODI Rinse Dry Box is an inline rinse and dry unit that washes the tops and sides of filled cans, then dries them with high-efficiency air nozzles powered by your existing facility compressor. Wet or residue-covered cans going into pack-out or labeling create problems downstream. No separate blower required, and integrated drip pans keep water off the floor. 304 stainless steel, standard 6.7" container clearance, and an adaptable mount that fits virtually any existing conveyor. It is a perfect addition to the CCL-45 filler.
The CODI Rinse Dry Box is an inline rinse and dry unit that washes the tops and sides of filled cans, then dries them with high-efficiency air nozzles powered by your existing facility compressor. Wet or residue-covered cans going into pack-out or labeling create problems downstream. No separate blower required, and integrated drip pans keep water off the floor. 304 stainless steel, standard 6.7" container clearance, and an adaptable mount that fits virtually any existing conveyor. It is a perfect addition to the CCL-45 filler.
PRODUCT FEATURES
Rinse and Dry in One Pass
Rinses tops and sides of cans, then dries them with high-efficiency air nozzles. No separate drying station needed.
Uses Existing Compressor
Dry-off runs on facility air. No dedicated blower to source, install, or maintain.
Structural Engineering
Hex-Formed corners
Tab & clost construction
304 Stainless Steel
Fits Existing Conveyors
Adaptable mount works with virtually any conveyor system. Standard 6.7" container clearance, with modifications available for larger formats.
PRODUCT INFORMATION
8 CFM @ 110 PSI
1 Gal / Min
Post-Fill Cleaning
Dimensions & Weight
L: 12" (305 mm)
W: 24" (610 mm)
H: 23" (584 mm)
Weight: ~60 lbs (27 kg)
Utilities
Air: 8 CFM @ 110 PSI
Water: 1 Gal/min (3.8 L/min)
Mounting
CODI Conveying
Non-CODI Conveying
Container Rinsing & Drying
Cleans and dries containers prior to downstream packaging.
Rinses top and sides to remove residue and debris after filling
High-efficiency air knives provide thorough drying
Uses facility air supply, no separate blower required
Construction
Built for durability and easy cleaning in production environments.
304 stainless steel construction
Integrated drip pans capture excess water
Designed for washdown conditions
Line Integration
Adapts easily to existing conveyor systems.
Fits virtually any conveyor layout
Standard 6.7” (170 mm) clearance
Modifications available for larger container formats
VIDEO
ACCESSORIES
FAQ
What does the Rinse and Dry Box remove?
Product residue left on the outside of containers after filling and seaming, along with the rinse water used to lift it. Residue on a can wall causes label adhesion failures and sticky packs, and reduces the perceived value of your product.
Where does it belong in the line?
After filling and seaming, ahead of labeling or pack out. Placing it before the label applicator matters most, since a residue-free dry wall is what pressure-sensitive labels need to adhere consistently.
What utilities does it require?
8 CFM at 110 PSI of compressed air and 1 gallon per minute of water. The unit is 12 by 24 by 23 inches and weighs roughly 60 pounds, so it adds minimal length to the run. Mounting is specified for CODI or non-CODI conveying.
How is it different from the Sure Dry Blower?
The Rinse and Dry Box rinses the can and then blows off excessive moisture. The Sure Dry Blower is designed to thoroughly dry your can however, condensation may still exist so consider a warmer if this is an issue.
