CE Counter Pressure Canning Line
CE COUNTER PRESSURE FILLER & SEAMER
CE-compliant counterpressure filler and seamer | inline canning machine | European beverage packaging

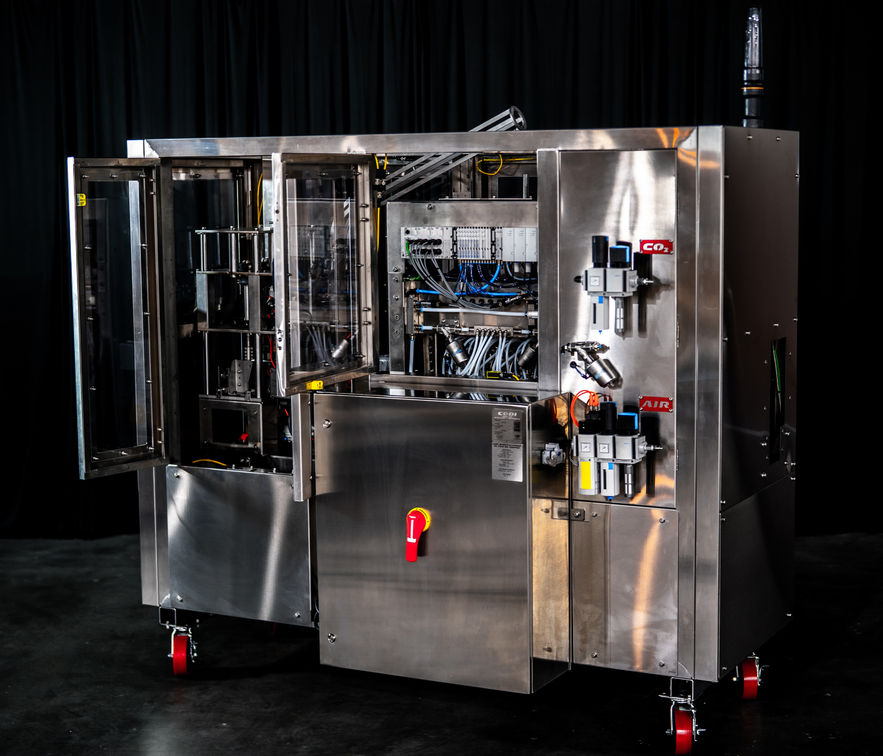

The CODI CCL-45CE is a fully enclosed (monoblock), CE-compliant inline counterpressure can filler and seamer that handles carbonation up to 4.0 volumes and warmer incoming liquid temperatures. It is the same proven counterpressure technology as the CCL-45, built to full EU compliance with an enclosed footprint for producers who need it. 304 stainless steel throughout for true CIP capability. Since 2015 this is the counterpressure filler trusted by craft breweries, coffee roasters, and kombucha makers around the world.
The CODI CCL-45CE is a fully enclosed (monoblock), CE-compliant inline counterpressure can filler and seamer that handles carbonation up to 4.0 volumes and warmer incoming liquid temperatures. It is the same proven counterpressure technology as the CCL-45, built to full EU compliance with an enclosed footprint for producers who need it. 304 stainless steel throughout for true CIP capability. Since 2015 this is the counterpressure filler trusted by craft breweries, coffee roasters, and kombucha makers around the world.
PRODUCT FEATURES
Clean-in-Place (CIP)
Fully CIP-capable with closed-loop recirculation, high-temperature rated components, and PLC-controlled cycles for thorough, repeatable sanitation between runs.
Counterpressure Filling
Isobaric filling seals and purges each can with CO₂ before filling under pressure, protecting carbonation and enabling consistent fills across a wider range of temperatures and carbonation levels up to 4.0vols.
Cam-Driven Seaming
Mechanical seaming synchronized with the feed screw delivers a consistent, reliable seal every cycle with minimal variability and straightforward troubleshooting.
Centralized HMI Control
A single control point manages purge cycles, tank pressure, fill rate, settle time, and snift cycles, with audible and visual alerts if anything falls out of spec.
PRODUCT INFORMATION
Up to 4.0 Vols CO₂
Full CIP Capable
CE Compliant
Performance & Speeds
Throughput Capacity (6-Head): Up to 50–55 CPM (3,300 CPH | 137 cases/hr | 11.7 hL/hr)
Throughput Capacity (3-Head): Up to 30–35 CPM (1,800 CPH | 75 cases/hr | 6.5 hL/hr)
Container Compatibility: Standard (202/211), Sleek (202/204), Slim (200/202, 202/202), and King Cans (up to 24 oz / 750 mL), plus aluminum ROPP bottles
End/Lid Compatibility: 202 B64, CDL, SuperEnd, and 200 formats

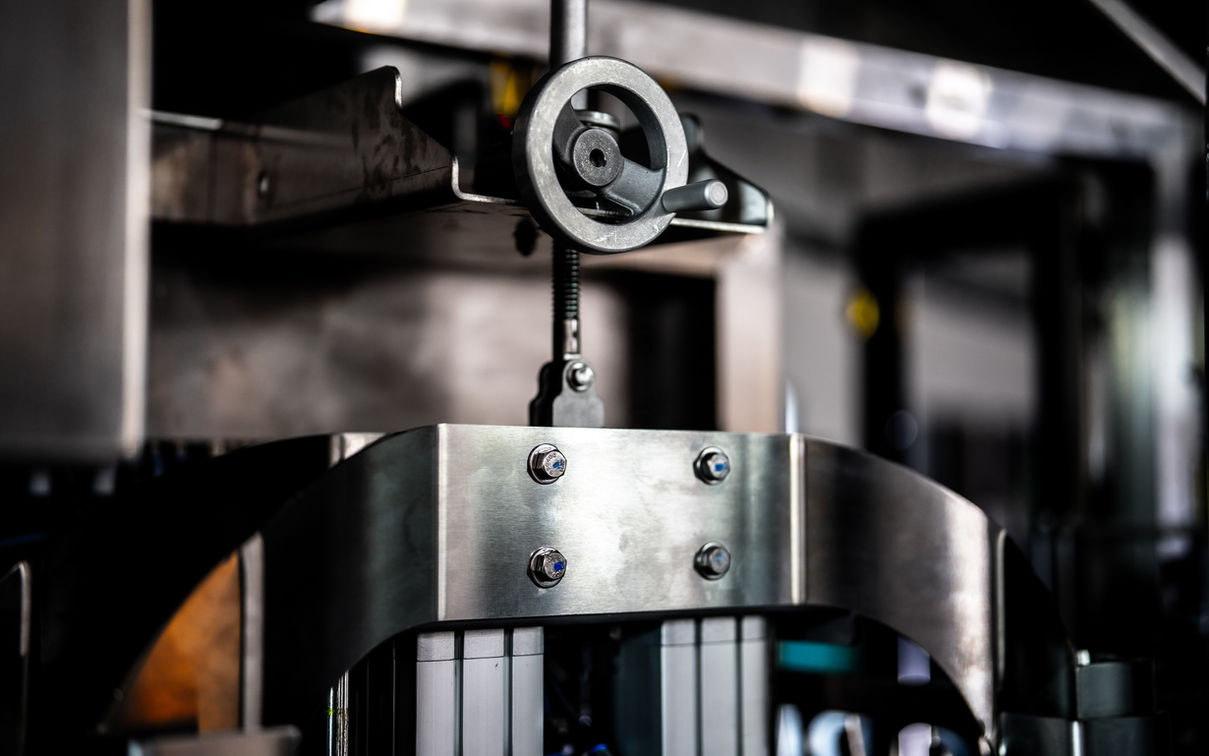

Changeover Time: Tool-less container height adjustments via a precision Joyce mechanical jack and quick-release indexing pins
Physical Dimensions & Safety Guarding
Overall Footprint (L × W × H): 84" × 34" × 70" (2,134 × 864 × 1,778 mm)
Maximum Height (with Lid Feed Chute): 87.5" (2,222 mm)
Machine Weight: Approx. 1,300 lbs (590 kg)
Conveyor Deck Height: Nominal 40" (1,016 mm) with heavy-duty threaded leveling feet or optional locking industrial swivel casters
Enclosure Architecture: Full CE Monoblock stainless steel frame with interlocked, transparent polycarbonate safety doors enclosing both the filling and seaming zones
Beverage & Process Parameters
Carbonation Capability: Still to 4.0+ volumes of CO₂ (0 to 8 g/L)
Product Fill Temperature: 28°F to 52°F (–2°C to 11°C)—counterpressure balance allows warm fills without breakout foaming
Brite Tank Supply Head Pressure: 8 to 15 PSI recommended
Product Inlet: 1.5" Sanitary Tri-Clamp connection directly to the onboard product pump
Buffer Tank Pressure Rating: Certified 45 PSI working pressure
Utility Requirements
Electrical Supply:Standard Supply: 380–500 VAC, 3-Phase, 50/60 Hz, 13 Amps Full Load
Control System: 110V internal control transformer with CE-certified low-voltage safety relays
Regulatory Compliance: Engineered and labeled to meet European Union Machinery, EMC, and Low Voltage Directives
Compressed Air:Demand: 11 to 12 SCFM @ 100–110 PSI constant (clean, dry air meeting ISO 8573-1:2010 Class 2)
Connection: Dedicated 1/2" ID supply line to 1/4" NPT female quick coupler
CO₂ / Beverage Gas Supply:Inlet Pressure: 40 to 80 PSI (regulated to 50–60 PSI at machine manifold)
Supply Line: Dedicated 1/2" ID line direct from bulk dewar or vaporized supply (vaporizer required for liquid gas sources)
Gas Consumption: ~35 lbs CO₂ per 100 cases of 12 oz cans; ~50 lbs CO₂ per 100 cases of 16 oz cans
Water & CIP Sanitation:Rinse Connections: Dedicated supply for twist rinse and outfeed can wash (min. 10 PSI; city water 40–50 PSI typical)
CIP Compatibility: Full Clean-In-Place rated for hot caustic washes and sanitizing cycles up to 180°F (82°C)
Configurations & Enclosure
3-Head or 6-Head Filling Carriage: Deploy with 3 heads for initial volume and upgrade to 6 heads in the facility as production expands.
ROPP Screw Cap Bottling Upgrade: Rotary capper module with magnetic clutch spindle for aluminum ROPP bottles.
Mobile Frame Package: High-load locking swivel casters and integrated quick-disconnect utility manifolds for shared-space facilities.
Oxygen Minimization & Quality Control
CO₂ Pre-Purge Manifold: Pre-evacuates ambient air from empty containers prior to reaching the fill heads, accelerating cycle times.
Enclosed CO₂ Under-Cover Tunnel: Gas manifold blanket protecting the foam cap between the fill heads and seamer from ambient oxygen ingress.
High-Pressure Foam Jetter: Micro-jet hot water injection that forms a dense foam crown to displace headspace air just before the lid drops.
Integrated Liquid Nitrogen Doser: Chart discrete LN2 dosing system for non-carbonated wines, RTDs, and still beverages requiring container rigidity.
Process Automation & Maintenance
Bi-Directional CIP System: Automated manifold valving that reverses cleaning solution flow to scour internal fill paths.
Automated Feed Screw Lubrication: Dispenser that meters food-grade lubricant onto infeed screws to eliminate friction on shrink-sleeved cans.
Electromagnetic Flowmeters: Individual flow sensors per fill head for high-precision volumetric dosing.
Inspection & Coding Integration: Mounting brackets and sensor handshakes for Videojet/Keyence date coders and Heuft/Filtec fill-level inspection.
Comprehensive Maintenance Toolbox: 30" mobile cabinet equipped with micrometer, digital calipers, spring force gauges, pin gauges, and spare hardware.
Tiered Spare Parts Packages: Curated wear-part, pneumatic, and soft-seal gasket kits to maximize operational uptime.
Full CE Monoblock Guarding & Category Safety Interlocks
Built with an integrated 304 stainless steel and heavy-gauge polycarbonate enclosure completely guarding all pinch points, moving screws, and rotating seamer tooling.
Dual-channel safety interlock switches instantly halt conveyor motion, fill carriage stroke, and seaming cycles if an enclosure door is opened during a run.
Centralized E-stop circuits immediately dump pneumatic air pressure via an automated safety exhaust valve and isolate servo drives.
True Isobaric Counterpressure Filling
Creates a sealed, pressurized atmosphere inside each can to equalize pressure with the liquid buffer tank prior to valve actuation.
Selectable Flush (continuous displacement) or Evacuate (multi-cycle pressurization and purge) modes strip oxygen down to single-digit ppb levels.
Fills high-gravity and highly carbonated beverages up to 4.0+ volumes of CO₂ without breakout foaming, even at warm temperatures up to 52°F (11°C).
Heavy-Duty Cam-Driven Seaming (SH-45)
The single-head seamer is mechanically cam-driven and electronically synchronized with the filler infeed screw.
Dual multi-turn absolute encoder feedback maintains perfect can alignment into the seaming chuck without container sloshing or seam deformation.
Precision 1st and 2nd operation seaming rolls deliver consistent double seams across millions of cycles on standard, sleek, and slim cans.
All-Stainless Sanitary Construction & Hot CIP (TACT)
Constructed without unanodized aluminum or structural plastics in the product contact envelope.
Heavy-gauge AISI 304 stainless steel chassis, buffer tank, and fluid piping handle full Clean-In-Place chemical cycles.
High-temperature components withstand hot caustic cleaning cycles up to 180°F (82°C) to break down organic soils and hop resins.
Centralized Schneider Electric HMI & Remote Telemetry
Industrial touchscreen display provides complete recipe management, individual fill head pressure readouts, snift timers, and seamer RPM monitoring.
Integrated Phoenix Contact mGuard network hardware enables secure remote telemetry diagnostics and control software support from CODI engineering.
Live CPM throttling allows operators to dial down machine speed during secondary packaging changes without stopping production.
Multi-Stage Foam & Pressure Snift Management
Dual independent snift throttle valves slowly decompress the can headspace before breaking the fill seal.
Fine-tuning snift duration and choke pressure on the HMI preserves carbonation while cultivating the ideal foam crown before seaming.
ACCESSORIES
FAQ
What is the difference between the CCL-45 and the CCL-45CE?
Fill and seam performance is identical. The CE version is built to EU compliance standards with full enclosure, which is why it weighs roughly 1,845 pounds against 1,300 for the standard CCL-45. Specify it if you are selling into a CE market, or if you want a fully enclosed line regardless of market.
Does the CE version give up any capability?
No. Carbonation range is 0 to 4.0+ volumes CO2, product temperature 28 to 52 degrees F, and speed up to 55 CPM under ideal conditions, matching the standard machine. Full CIP capability and 304 stainless construction carry over unchanged.
Why would a producer outside the EU choose the CE version?
A fully enclosed monoblock contains the fill and seam zone, which limits airborne contamination reaching open cans and simplifies guarding on a fast line. Producers outside CE markets sometimes specify it for that reason alone.
What options are available on the CCL-45CE?
3 head or 6 head configurations, ROPP capper upgrade, CO2 tunnel, pre-purge or widget purge, foam jetter, bi-directional CIP, flowmeter, and screw lubrication. Voltage covers 208-240V single or three-phase and 380-500V three-phase. For dedicated ROPP bottle work, the CCL-45ROPP is the purpose-built platform.
