CARTONER - FLEX PACK
Automated cartoner | pick-and-place box packer | beverage and food packaging line

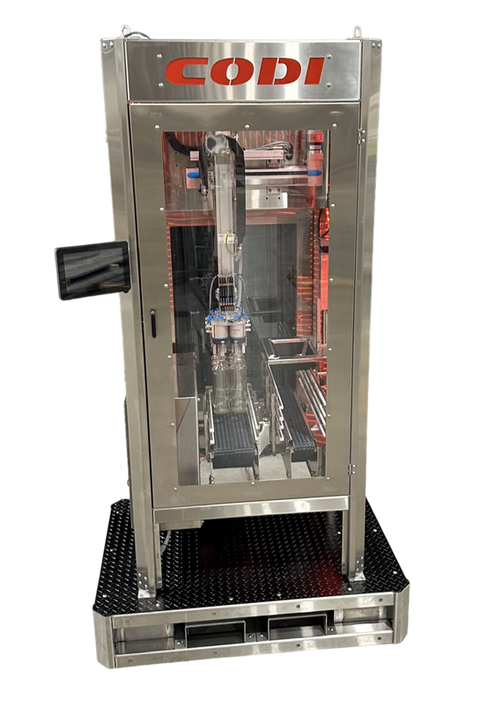

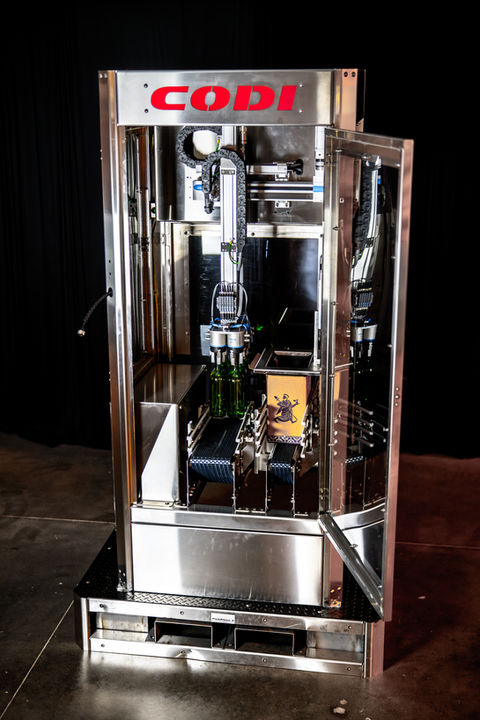

The CODI Flex Pack is a servo-driven pick-and-place cartoner that automates case packing for cans, bottles, pouches, bags, aerosols, and more. Manual case packing is slow, inconsistent, and hard on your people. Repetitive motion injuries are a real cost, and they compound over time. The Flex Pack features quick-connect heads for fast changeovers. It integrates cleanly with conveyors, accumulators, carrier applicators, and the Flex Stack gantry palletizer. Stainless steel 304 constructio.
The CODI Flex Pack is a servo-driven pick-and-place cartoner that automates case packing for cans, bottles, pouches, bags, aerosols, and more. Manual case packing is slow, inconsistent, and hard on your people. Repetitive motion injuries are a real cost, and they compound over time. The Flex Pack features quick-connect heads for fast changeovers. It integrates cleanly with conveyors, accumulators, carrier applicators, and the Flex Stack gantry palletizer. Stainless steel 304 constructio.
PRODUCT FEATURES
All-Electric Servo Motion
No pneumatics. Variable-speed electric axes give you smooth, consistent picks and precise product placement every cycle.
Fast Format Changeover
Quick-connect gripper heads swap out without tools. Adjust container height through the HMI. Changing formats is simple and quick.
Wide Format Compatibility
Cans, bottles, PET, aerosols, pouches, bags, bag-in-box. One machine handles the range so you're not buying dedicated equipment for every SKU.
Stainless Steel Construction
Built to hold up in production. Fully enclosed with integrated safety systems to protect operators and keep the line running.
PRODUCT INFORMATION
Up to 120 CPM
SS Construction
Reduce Manual Labor
Dimensions & Weight
L: 42" (1067 mm)
W: 47" (1194 mm)
H: 90" (2286 mm)
Weight: ~675 lbs (306 kg)
Performance
Speed:
12 cycles per minute
6 Container grippers = 60CPM
12 Container grippers = 120CPM
Utilities
Air: 5 CFM @ 110 PSI
Certification
UL
CSA Compliant
CE Compliant
Controls Platform
Festo
ABI
Box Type & Weight
Specify
Kg Of Gantry
Light
Normal
Heavy
Power Coat Color
Specify
Skid Mounted
Y/N
Voltage
100-240V / 1PH
208-240V / 1PH
208-240V / 3PH
380-500V / 3PH
Configuration
Case Un-Packer
Case Packer
Both Case Packer & Un-Packer
Product Size
Specify
Speed (Desired Carton Per Minute)
Specify
Frame Construction
Carbon Steel
Stainless Steel
Vision (SICK)
Y/N
Versatile Product Handling
Designed to handle a wide range of containers and package formats with fast changeover between applications.
Supports cans, bottles, PET, aerosol, boxes, bags, pouches, and bag-in-box
Multiple gripper and vacuum plate options
Quick-connect heads enable rapid changeover
HMI-adjustable settings for different container heights
Motion & Precision Control
All-electric design delivers precise, repeatable movement across a wide range of applications.
Variable speed control for optimized handling
Smooth, consistent motion without pneumatics
High positional accuracy for reliable stacking and placement
Throughput & Flexibility
Engineered to adapt to changing production needs without sacrificing performance.
Handles diverse product types on a single platform
Flexible configuration for multiple line layouts
Automation & Integration
Integrates seamlessly into existing lines with centralized control and system coordination.
HMI-driven operation for simplified control
Syncs with upstream and downstream equipment
Construction & Safety
Built for long-term durability with integrated operator protection.
Stainless steel construction (optional) for industrial environments
Fully enclosed system with integrated safety guarding
Available Upgrades
Expandable platform to support additional functionality and line requirements.
Product orientation systems
Integrated box erectors and conveyance solutions
VIDEO
ACCESSORIES
RESOURCES
Add a Title
Add a Title
Add a Title
FAQ
Can the Flex Pack both pack and unpack cases?
Yes. Configuration is specified as case packer, case un-packer, or both.
How is throughput determined?
The gantry runs 12 cycles per minute. Containers per minute follows from gripper count: 6 grippers yields 60 CPM and 12 grippers yields 120 CPM. Gripper configuration is specified for your container and case geometry.
What container formats can it handle?
Cans, bottles, PET, aerosols, boxes, bags, pouches, and bag-in-box. Product size, box type, and box weight are specified at order, with an optional vision system.
How does the Flex Pack fit with palletizing?
It sits directly upstream of the Flex Stack gantry palletizer, so packed cases move from cartoning to palletizing without an intermediate handling step. Both run on the same controls platform options, Festo or ABI, which keeps integration and spares consistent across the post-fill line.
